Portable
Gasoline
Flow Rate
6 m3/h
Dimension
80X36X40cm
Helium Gas
Helium gas is not flammable and safe for use, cause it is noble gas not like hydrogen. Hydrogen is much more and cheaper than helium in this planet however it is not safety and most of countries forbid to use.
The price of helium is expensive but now the price keeps rising up, but the need still have too big in market. The bad news is most of helium gas are used for Only One time – the wastage of helium gas is very uneconomical, it is very popular for Helium Balloons and Blimps.
Helium Compressor
With market comes to high competitive,we are thinking how to make business longer and bid more other company to get more business,then we came up with good solutions helium gas recovery and reclaim systems.
It sucks the helium gas out of the balloons&airships, then compresses and pumps it back into helium tank/cylinder for repetitive use.
It is an irreplaceable tool for companies that have to use airship/balloon.
Block
3 Cylinder
Warrant
1 yr
Net Weight
Weight:48 kgs
Power
4 HP
RPM
2250 r/min
High-Pressure
100-300 bar
Performance
Outstand Compress solution for your need
Filling units optimise reliability and safety for the dependable supply of clean breathing air or compressed air in all areas of application, ensuring consistent compliance with international air quality standards such as DIN EN 12021 (breathing air standard).
We offers state-of-the-art complete solutions for the field of sports & safety tailor-made to meet the needs of your application range. From compression to treatment and beyond to the distribution of air, breathing air and nitrox.
Application
- Diving
- Fire Fighting
- Defence
- Paintball Shooting
- Motor Sport
- Airship
- Balloon & Blimp
Gas To Compress
- Air
- Breathing Air
- Helium Gas
- Nitrogen
- Argon
- Oxygen
- Natural Gas

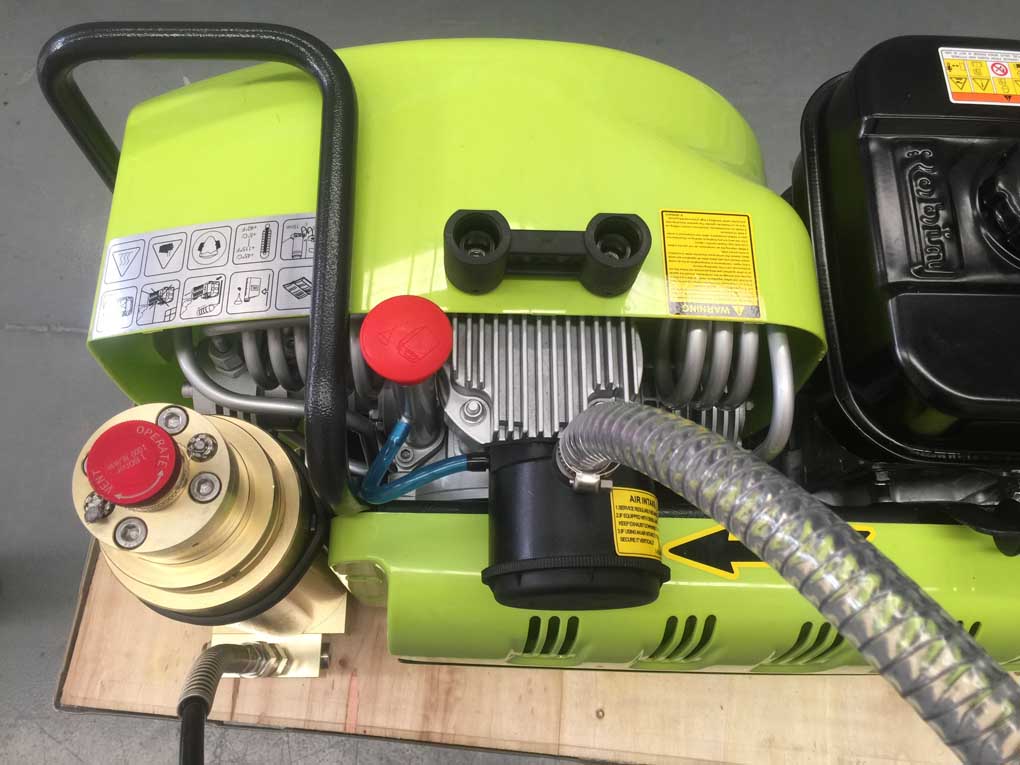

Compressor Block
- Compressor block has been designed for the most demanding professional applications.Designed and Assembled in German at Air cooling, oil lubricated type
- Three Cylinders,Three Stages, Air Cooled block,Stainless steel intercoolers and after cooler
- Efficient and low energy consumption, Reliable oil lubrication of cylinder surface

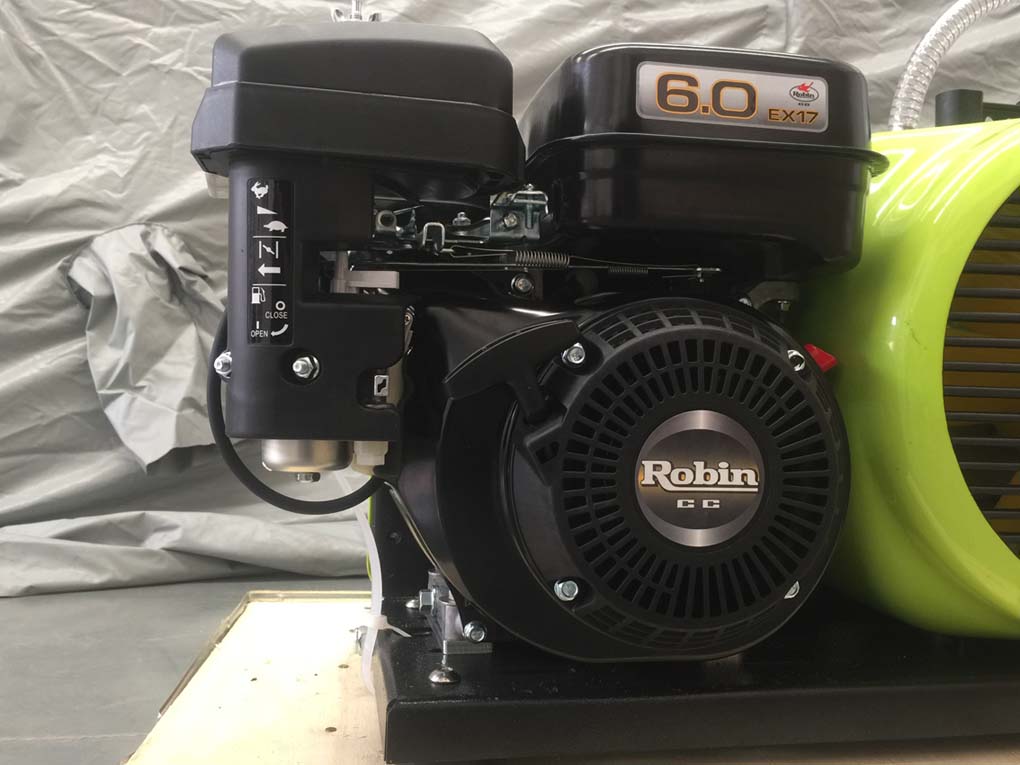

Motor
- Power 4 HP
- Four Cylinder
- Subaru l or Robin
- 3.5 CFM

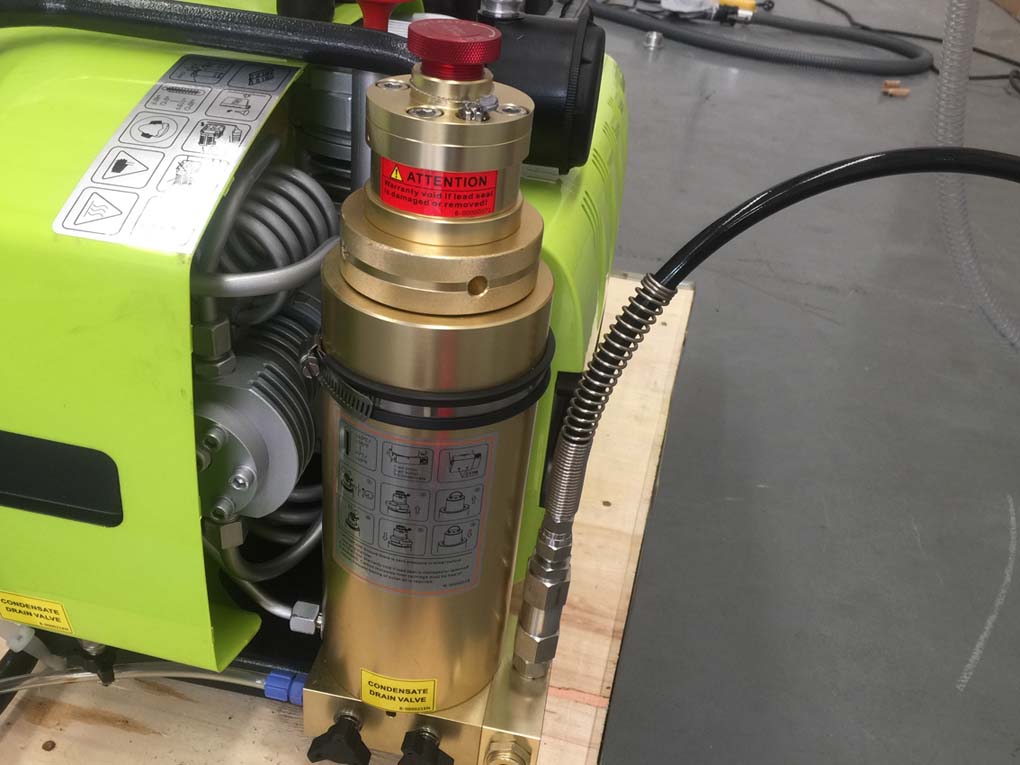

Fiter System
- Separated filter house made of Aluminum with Final Safety Valve enables particularly high levels of operational safety to be achieved
- Pressure maintaining valve for optimum air processing
- Filter system with integrated oil and water separator and pressure retention check valve can be relied upon for breathing air treatment conforming to DIN EN 12021
Filling Device and Hose
- The filling device comprises a flxible high-pressure filling hose filling valve complete and final guage
- Swivel hose connection enable the filling valve to connected the air cylinder quickly, easily and safely
- The final pressure gauge makes it easy to read off the filling pressure
- High quality and high-pressure filling hose made of long-life hose material for flexible and safe handing
