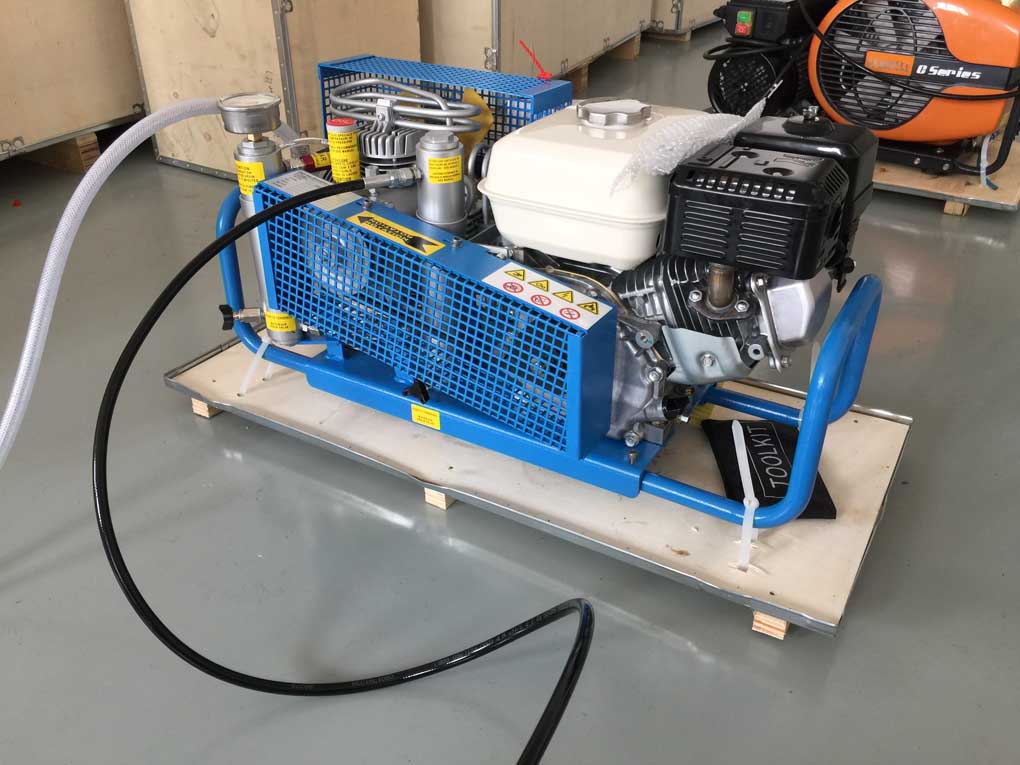

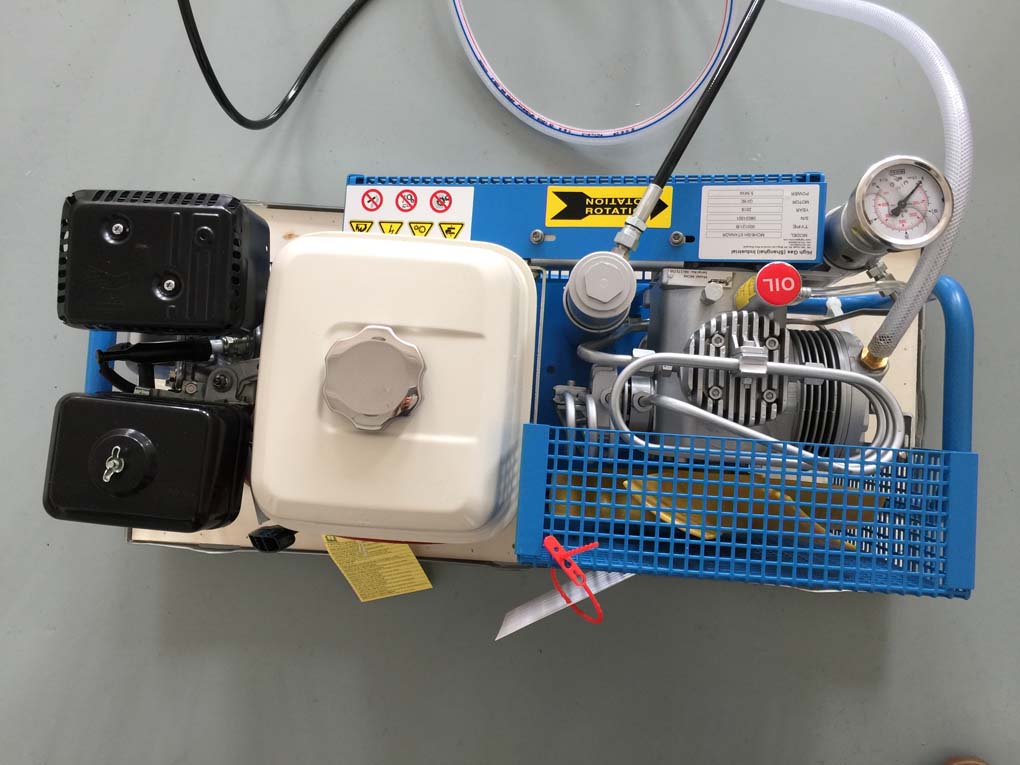

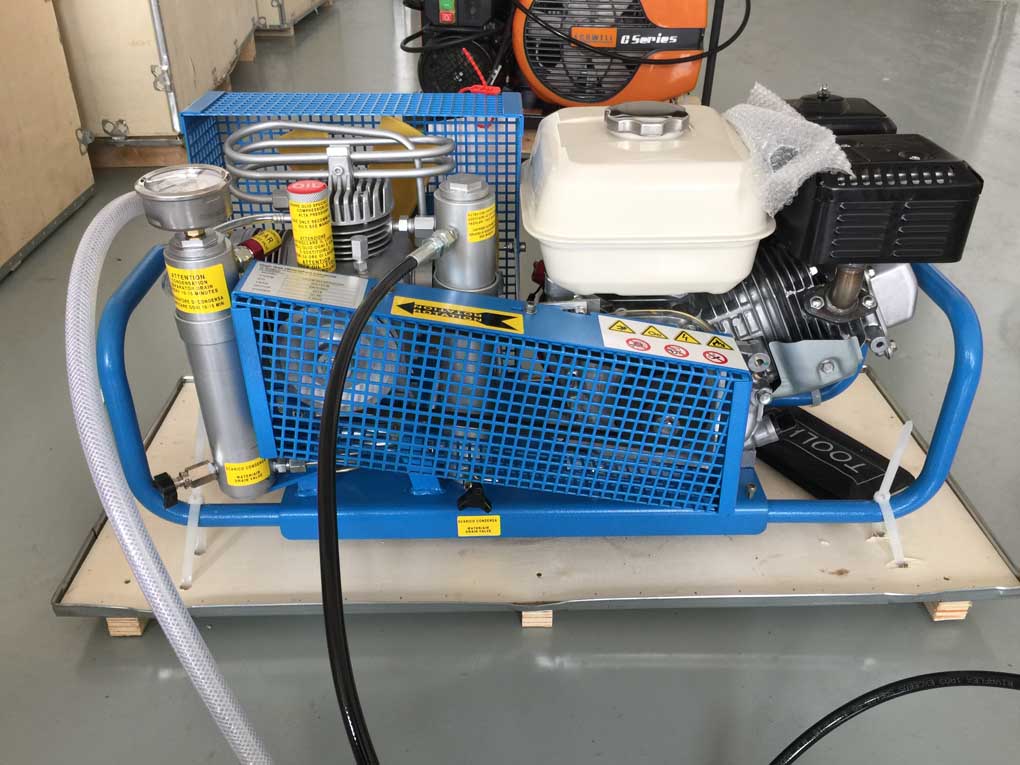

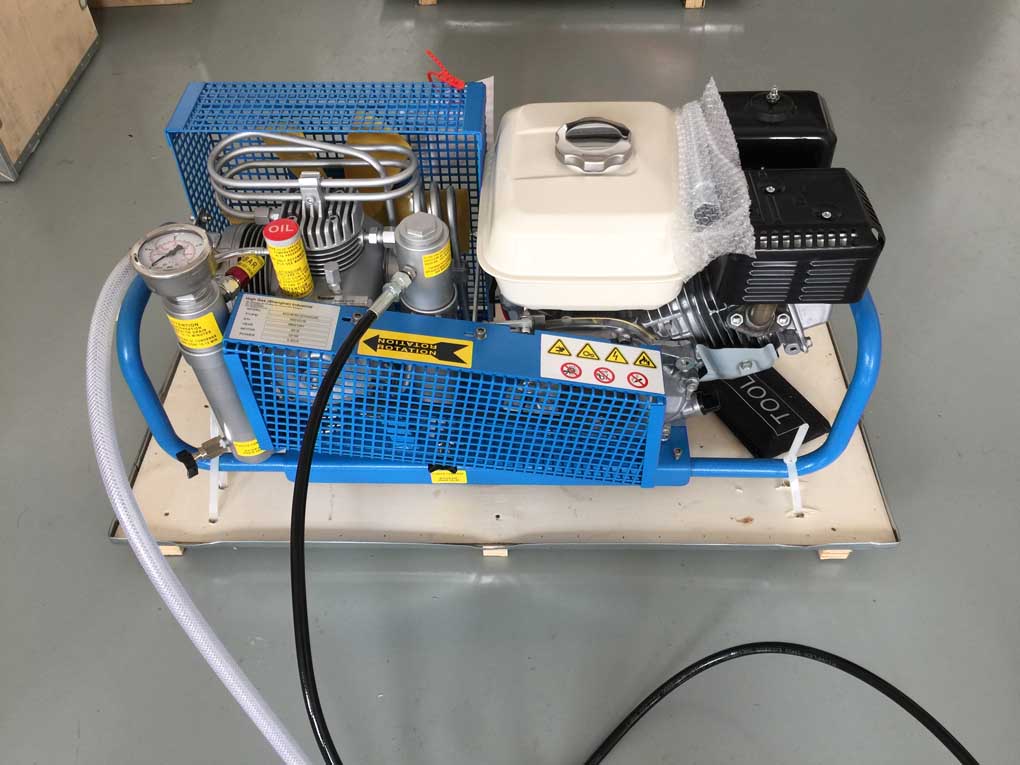

Helium Compressor AD-CN-100l/GS
It is the Smallest Gasoline Version Helium Compressor with three cylinder, Net Weight is only 50kgs. Flow Rate is 6 m/3. It is very easy to be transported and operate.It is high-pressure portable compressor
- Air Pressure(option): 100-300 bar
- Flow Rate: 6 m3/h
- Power: 4 HP
- RPM: 2100 r/mintues
- Packed Size: 86X54X45cm
- Gross Weight: 62kgs
Overview>
Inquiry Us >
Description
Helium Gas
Helium gas is not flammable and safe for use, cause it is noble gas not like hydrogen. Hydrogen is much more and cheaper than helium in this planet however it is not safety and most of countries forbid to use.
The price of helium is expensive but now the price keeps rising up, but the need still have too big in market. The bad news is most of helium gas are used for Only One time – the wastage of helium gas is very uneconomical, it is very popular for Helium Balloons and Blimps.
Helium Compressor
With market comes to high competitive,we are thinking how to make business longer and bid more other company to get more business,then we came up with good solutions helium gas recovery and reclaim systems.
It sucks the helium gas out of the balloons&airships, then compresses and pumps it back into helium tank/cylinder for repetitive use.
It is an irreplaceable tool for companies that have to use airship/balloon.
Block
3 Cylinder
Warrant
1 yr
Net Weight
Weight:50 kgs
Power
4 HP
RPM
2100 r/min
High-Pressure
100-300 bar
Performance
Outstand Compress solution for your need
Filling units optimise reliability and safety for the dependable supply of clean breathing air or compressed air in all areas of application, ensuring consistent compliance with international air quality standards such as DIN EN 12021 (breathing air standard).
We offers state-of-the-art complete solutions for the field of sports & safety tailor-made to meet the needs of your application range. From compression to treatment and beyond to the distribution of air, breathing air and nitrox.
Application
- Diving
- Fire Fighting
- Defence
- Paintball Shooting
- Motor Sport
- Airship
- Balloon & Blimp
Gas To Compress
- Air
- Breathing Air
- Helium Gas
- Nitrogen
- Argon
- Oxygen
- Natural Gas
Compressor Block
- Designed and Assembled China
- 3 Cylinders,3 Stage, Air Cooled block,Stainless steel intercoolers and after cooler
- Efficient and low energy consumption, Reliable oil lubrication of cylinder surface
- Oil Water Separator , air cooled
Motor
- Honda
- Power: 4HP/3KW
Fiter System
- Tri-chem breathing air purification system with actived carbon/moblecular sivev/hopcalite
- Disposable purification cartridge is convenient and easy to replace
- Pressure maintaining valve for optimum air processing
- Filling valves with hoses
Filling Device and Hose
- The filling device comprises a flxible high-pressure filling hose, filling valve complete (Valve Switch and Pressure Relief Valve) and final guage
- Swivel hose connection (External Thread G5/8) enable the filling valve to connected the air cylinder quickly, easily and safely
- The final pressure gauge makes it easy to read off the filling pressure
- High quality and high-pressure filling hose made of long-life hose material for flexible and safe handing
